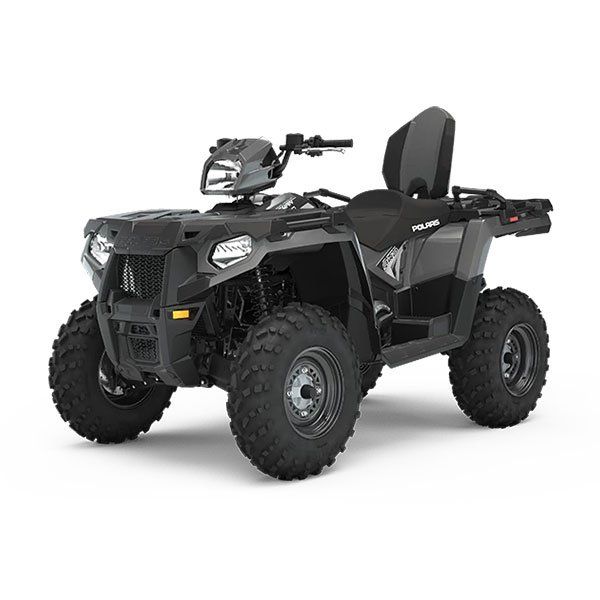

Sportsman Touring 570 EPS - Titanium Metallic (Quad L7e)


Availability: Call For Availability


More than just incredible performance and capability, the uncompromising design delivers unyielding durability, increased component size and improved designs for the confidence to push further and work harder.

Ride Comfortable

Efficient underbody airflow makes for a comfortable, cooler and quieter ride, while the 9.5” rear suspension travel keeps the ride smooth even when the trail isn't.

Ride Longer and Further

Industry’s fastest-engaging all-wheel drive handles around corners and class-leading ground clearance manuevers over rocks without hesitation. Pair that with 8- gallons of sealed storage and factory-installed third headlight you to can ride for as long as you want.

Do More, with Sportsman

NEW more powerful battery for reliable starts, over 1,200 lb towing capacity to haul more, 575 lb payload capacity and 270 lb of combined front and rear rack capacity. Factory-installed winch and plow mount plate allows for speedy accessory integration to get the tough jobs done quickly.


Engine & Drivetrain

Engine Type Prostar 4-Stroke DOHC Single Cylinder
Cylinders - Displacement
Fuel System Electronic Fuel Injections
Transmission / Final Drive Automatic PVT P/R/N/L/H In-line Shifting
Drive System Type
One Touch On-Demand AWD/2WD
Cooling LIQUID

Suspension / Brakes / Wheels

Front Suspension MacPherson Strut With 8.2 in (20.8 cm) Travel
Rear Suspension
Dual A-Arm, IRS 9.5 in (24.1 cm) Travel
Front / Rear Brakes
Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park In-Transmission / Lockable Hand Lever
Front Tyres
25 x 8-12; 489
Rear Tyres
25 x 10-12; 489


Bed Box Dimensions (LxWxH) n/a
Front / Rear Rack or Box Capacity 41 kg / 82 kg
Fuel Capacity 25.5 L
Ground Clearance

27.9 cm

Overall Vehicle Size (L x W x H) 218.4 x 121.9 x 121.9 cm
Wheelbase 142.2 cm
Dry Weight 330 kg


Seat Height 85.7 cm
Cargo System Lock & Ride, 6 Gal (23 L) Front Dry Storage, 2 Gal (8 L) Rear Storage
Hitch Towing Rating 680 kg
Hitch / Type Standard 1.25 in (3.2 cm) Receiver
Instrumentation All Digital Gauge / Speedometer / Odometer / Tachometer / Two Tripmeters / Hour Meter / Gear Indicator / Fuel Gauge / AWD Indicator / Volt Meter / Coolant Temperature / Hi - Temp Light / Clock / DC Outlet
