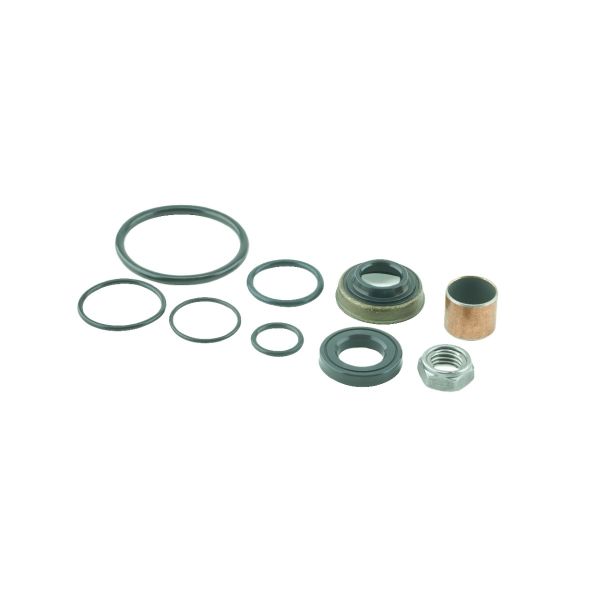

main product photo

K-Tech - Shock Absorber Seal Head Service Kit -KYB 46/16

K-Tech

Availability: In stock
Item code: 1004884
Only 2 left
SKU
205-200-065
€36.00

K-Tech shock absorber service kits are supplied with an oil seal, dust seal, piston rod bush and most O-Rings needed to service a shock absorber. All of the service parts are either equal or exceed the quality of the original parts. Most service kits are supplied with a new piston rod lock nut for added security when rebuilding the shock absorber.

This kit contains the following parts:

  • O-Ring 14.00x2.00 NBR70
  • O-Ring 22.00x1.50 NBR70
  • O-Ring 22.00x2.50 NBR70
  • O-Ring 26.00x2.00 NBR70
  • O-Ring 40.00x3.50 NBR70
  • Dust Seal 16.00x28.00x6.50/10.50
  • Guide Bush 16.00x18.00x15.00
  • Oil Seal 16.00x28.00x5.00
  • Piston Rod lock Nut M12x1.50P

Specs:

  • Inner Diameter (mm): 46.00
  • Outer Diameter (mm): 16.00

K-Tech shock absorber service kits are supplied with an oil seal, dust seal, piston rod bush and most O-Rings needed to service a shock absorber. All of the service parts are either equal or exceed the quality of the original parts. Most service kits are supplied with a new piston rod lock nut for added security when rebuilding the shock absorber.

This kit contains the following parts:

  • O-Ring 14.00x2.00 NBR70
  • O-Ring 22.00x1.50 NBR70
  • O-Ring 22.00x2.50 NBR70
  • O-Ring 26.00x2.00 NBR70
  • O-Ring 40.00x3.50 NBR70
  • Dust Seal 16.00x28.00x6.50/10.50
  • Guide Bush 16.00x18.00x15.00
  • Oil Seal 16.00x28.00x5.00
  • Piston Rod lock Nut M12x1.50P

Specs:

  • Inner Diameter (mm): 46.00
  • Outer Diameter (mm): 16.00

Honda
Honda CR125R (1992-2007)
Honda CR250R (1995-1996)
Honda CR500R (1994-2002)

Kawasaki
Kawasaki KX125 (1989, 1995-2008)
Kawasaki KX250 (1990-2008)
Kawasaki KX250F (2004-2005)
Kawasaki KX500 (1993-2004)
Kawasaki KLX450R (2007-2020)

Suzuki
Suzuki GSX-R1000 (2001-2008)
Suzuki RM250 (2003)
Suzuki RM-Z250F (2004-2006)

Yamaha
Yamaha YZ125 (1993-2005)
Yamaha YZ250 (1993-2005)
Yamaha YZ250F (2001-2005)
Yamaha YZ400F (1998-1999)
Yamaha YZ426F (2000-2002)
Yamaha YZ450F (2003-2005)
Yamaha WR250F (2002-2014)
Yamaha WR400F (1999-2000)
Yamaha WR426F (2001-2002)
Yamaha WR450F (2003-2015)
