K-Tech - Shock Absorber Seal Head Service Kit -Ohlins 46/16

K-Tech

Availability: In stock
Item code: 1004886
SKU
205-200-072
€36.00

K-Tech shock absorber service kits are supplied with an oil seal, dust seal, piston rod bush and most O-Rings needed to service a shock absorber. All of the service parts are either equal or exceed the quality of the original parts. Most service kits are supplied with a new piston rod lock nut for added security when rebuilding the shock absorber.

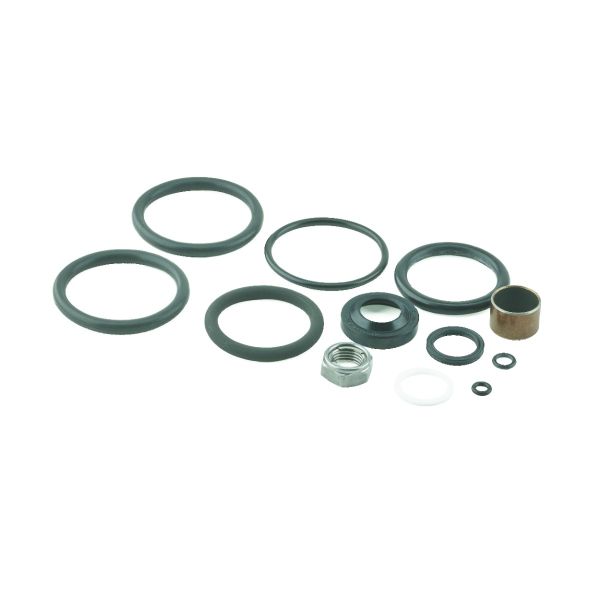

This kit contains the following parts:

  • O-Ring 04.10x1.60 NBR70
  • O-Ring 05.50x1.60 NBR70
  • O-Ring 33.00x5.00 FKM80
  • O-Ring 40.20x3.00 NBR70
  • O-Ring 33.00x5.00 NBR70
  • O-Ring 40.00x5.00 NBR70
  • Dust Seal 16.00x26.00x5.50/8.00
  • Guide Bush 16.00x18.00x12.00
  • Oil Seal Back Up ring 16.00x20.60x1.40 PTFE
  • X-Ring 15.54x2.62 NBR80
  • Piston Rod lock Nut M12x1.25P

Specs:

  • Inner Diameter (mm): 46.00
  • Outer Diameter (mm): 16.00

K-Tech shock absorber service kits are supplied with an oil seal, dust seal, piston rod bush and most O-Rings needed to service a shock absorber. All of the service parts are either equal or exceed the quality of the original parts. Most service kits are supplied with a new piston rod lock nut for added security when rebuilding the shock absorber.

This kit contains the following parts:

  • O-Ring 04.10x1.60 NBR70
  • O-Ring 05.50x1.60 NBR70
  • O-Ring 33.00x5.00 FKM80
  • O-Ring 40.20x3.00 NBR70
  • O-Ring 33.00x5.00 NBR70
  • O-Ring 40.00x5.00 NBR70
  • Dust Seal 16.00x26.00x5.50/8.00
  • Guide Bush 16.00x18.00x12.00
  • Oil Seal Back Up ring 16.00x20.60x1.40 PTFE
  • X-Ring 15.54x2.62 NBR80
  • Piston Rod lock Nut M12x1.25P

Specs:

  • Inner Diameter (mm): 46.00
  • Outer Diameter (mm): 16.00

Ducati
998S: 2002-2004
1098R: 2008-2009
Streetfighter S: 2009-2013
Hypermotard 1100 S: 2007-2010
1198R: 2010-2011
748R: 2000-2002
749R: 2004-2007
848 Evo Corse SE: 2010-2013
916R: 1994-1999
996R: 2000-2001
998R: 2002-2003
999R: 2004-2006
Desmodici: 2007-2010
Monster 1100 S: 2009-2013
888 SP4: 1992
Monster 1200 R: 2016-2018
Monster 1200 S: 2015-2017
Supersport S: 2017-2025
Multistrada 1000S DS: 2005-2006
Multistrada 1100S: 2007-2009

Aprilia
RSV 1000R Factory: 2003-2005
Tuono 1000R Factory: 2006-2010
RSV4 1000 Factory: 2009-2011
RSV4 1000RF: 2015-2016
Tuono V4 1100 Factory: 2015-2018
RSV 1000R: 1999-2000
RSV4 1000 Factory APRC: 2011-2015

Gas Gas
EC200 Racing: 2011, 2013
EC250 Racing: 2011, 2013
EC300 Racing: 2011, 2013
EC250 Six Days: 2011
EC250F: 2013
EC300F: 2013
EC450F: 2013

BMW
R1200S: 2006-2007

Ohlins (STX46)
2000-2025 (Available yearly)
