K-Tech - Shock Absorber Seal Head Service Kit -Sachs 50/16
K-Tech
K-Tech shock absorber service kits are supplied with an oil seal, dust seal, piston rod bush and most O-Rings needed to service a shock absorber. All of the service parts are either equal or exceed the quality of the original parts. Most service kits are supplied with a new piston rod lock nut for added security when rebuilding the shock absorber.

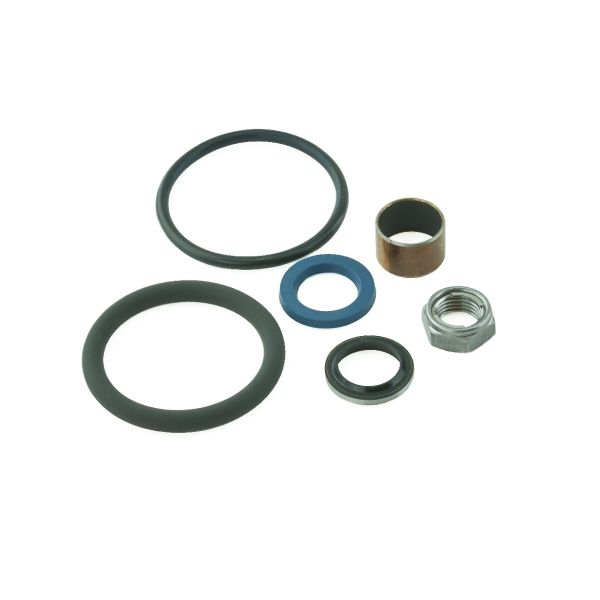

This kit contains the following parts:
- O-Ring 40.00x5.50 NBR70
- O-Ring 44.00x3.50 NBR70
- Dust Seal 16.00x22.00x3.00/4.00 NBR90
- Guide Bush 16.00x18.00x12.00
- Oil Seal 16.00x24.50x3.50 NBR90 SACHS
- Piston Rod Lock Nut M12x1.25P
Specs:
- Inner Diameter (mm): 50.00
- Outer Diameter (mm): 16.00
K-Tech shock absorber service kits are supplied with an oil seal, dust seal, piston rod bush and most O-Rings needed to service a shock absorber. All of the service parts are either equal or exceed the quality of the original parts. Most service kits are supplied with a new piston rod lock nut for added security when rebuilding the shock absorber.
This kit contains the following parts:
- O-Ring 40.00x5.50 NBR70
- O-Ring 44.00x3.50 NBR70
- Dust Seal 16.00x22.00x3.00/4.00 NBR90
- Guide Bush 16.00x18.00x12.00
- Oil Seal 16.00x24.50x3.50 NBR90 SACHS
- Piston Rod Lock Nut M12x1.25P
Specs:
- Inner Diameter (mm): 50.00
- Outer Diameter (mm): 16.00
Beta
RR 2T 250: 2011–2017
RR 2T 300: 2011–2018
RR 4T 350: 2011–2018
RR 4T 450: 2011–2014
RR 4T 498: 2011–2014
RR 4T 400: 2011–2014
RR 4T 390: 2017–2018
RR 4T 430: 2017–2018
RR 4T 480: 2017–2018
RR 2T 250 Racing: 2017–2018
RR 2T 300 Racing: 2017–2018
RR 4T 350 Racing: 2017–2018
RR 4T 390 Racing: 2017–2018
RR 4T 430 Racing: 2017–2018
RR 4T 480 Racing: 2017–2018
RR 2T 125: 2018
Gas Gas
EC250: 2011–2014
EC300: 2011–2014
EC300E: 2012–2014
EC125 Six Days: 2013
EC200: 2011–2014
EC250E: 2012
EC250F Six Days: 2012
EC300 Racing: 2012
EC250 Racing: 2012
EC125 Racing: 2014–2015
EC250: 2013–2014
EC300 Six Days: 2012
Husqvarna
CR125: 2010–2013
WR125: 2011–2013
CR150: 2011
WR150: 2011
WR250: 2010–2013
WR300: 2010–2013
TC449: 2011–2013
TE449: 2011–2013
Aprilia
SXV 550: 2008
