K-Tech - Shock Absorber Service Kit Complete -Ohlins TTX36 42/14

K-Tech shock absorber service kits are supplied with an oil seal, dust seal, piston rod bush and most O-Rings needed to service a shock absorber. All of the service parts are either equal or exceed the quality of the original parts. Most service kits are supplied with a new piston rod lock nut for added security when rebuilding the shock absorber.

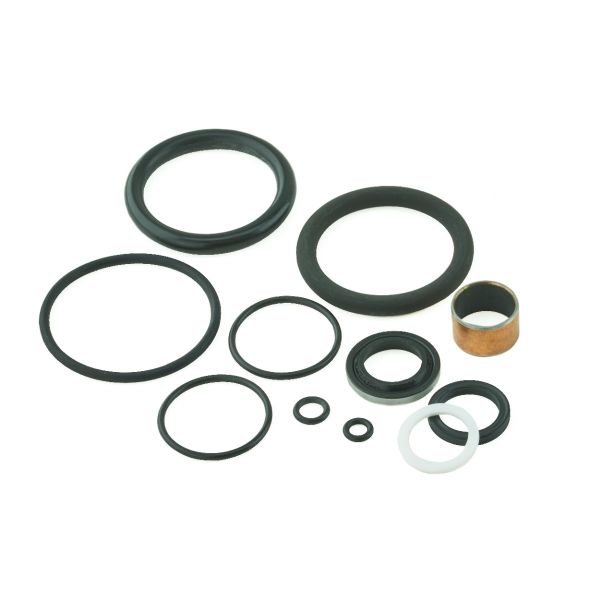

This kit consists of the following parts:

• O-Ring 04.10x1.60 NBR70
• O-Ring 05.50x1.60 NBR70
• O-Ring 25.53x1.78 NBR70
• O-Ring 33.00x5.00 NBR70
• O-Ring 33.00x5.00 FKM80
• O-Ring 38.00x2.50 NBR700
• Dust Seal 14.00x22.00x3.00/4.00 Ohlins TTX
• Guide Bush 14.00x16.00x10.00
• Oil Seal Back Up Ring 14.00x18.60x1.4 PTFE
• X-Ring 13.95x2.62 NBR70

Specs:

• Inner Diameter (mm): 42.00
• Outer Diameter (mm): 14.00
